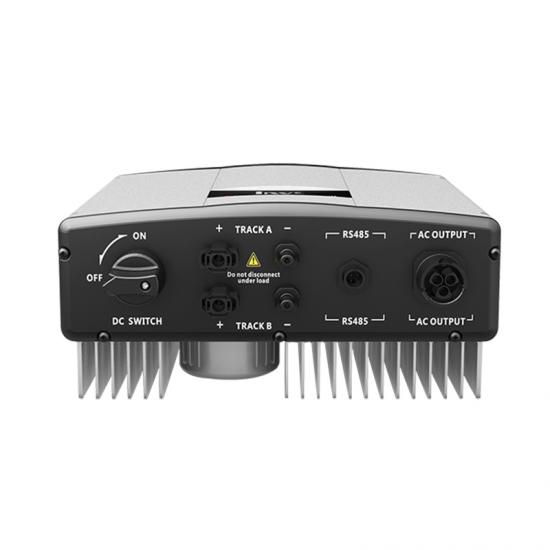

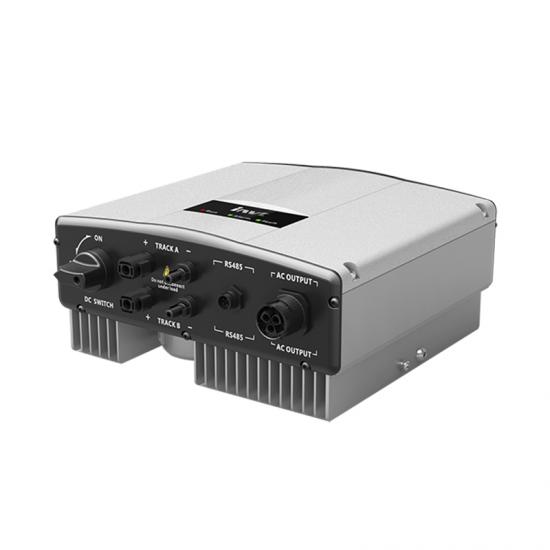

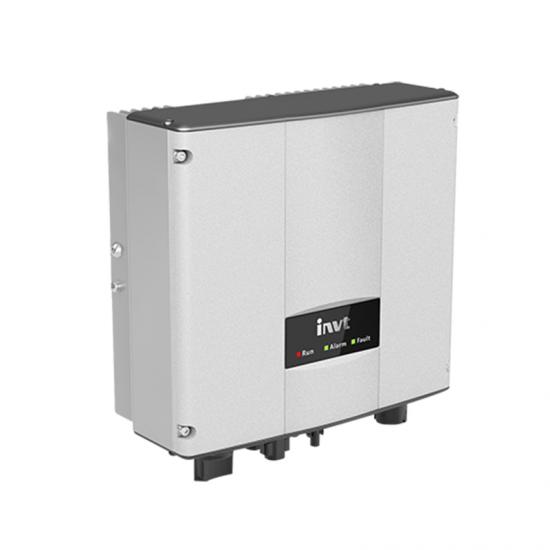

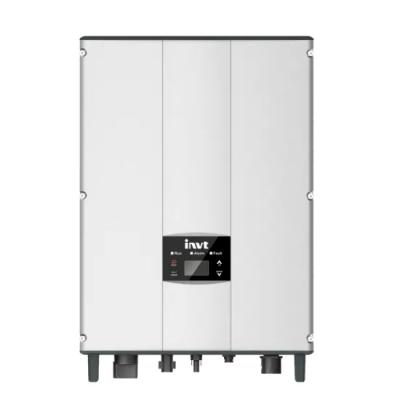

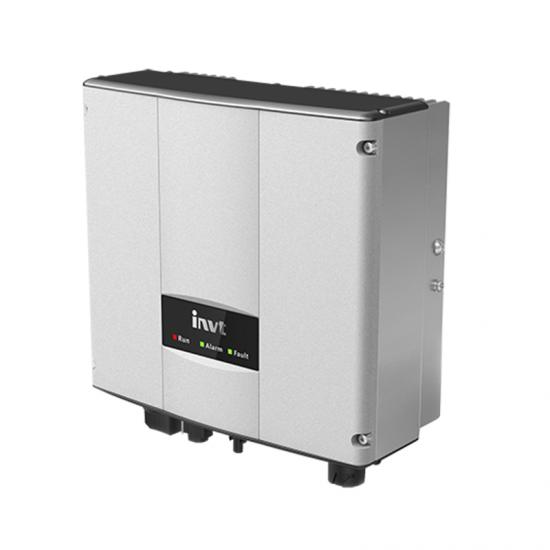

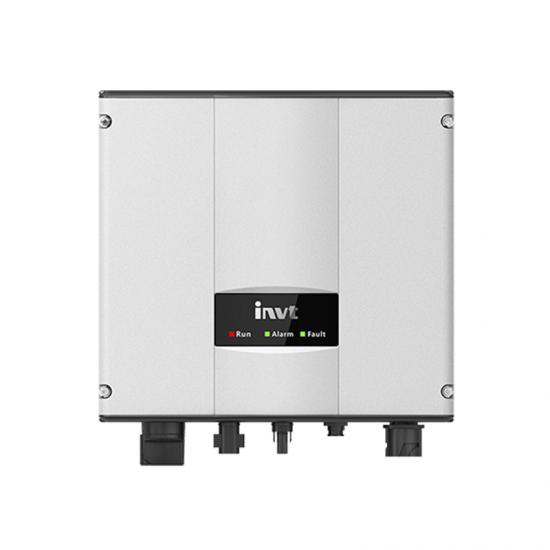

MG 0.75-3kW Single Phase On-grid Inverter Solar Power Storage Supply Inverter For Home

The iMars MG single-camera series are a photovoltaic group inverter developed by INVT for family users. It is small in size, light in weight, easy to install and maintain, and has high-cost performance.


  • Brand:

    Invt
  • Product Detail

Description


INVT iMars MG series solar inverters are developed for residential. Small in size, light in weight,

easy to install and maintain,and very cost-effective.


Features


Efficiency

Optimized electric control technology,over 98% efficiency;
Advanced dual-MPPT algorithms,suitable for installing solar modules with different angle of dip,max tracking efficiency up to 99.99%;


Safe
IP65 rated and Anti-theft design,suitable for any kind of outdoor environments;
Build-in a high-accuracy lock:records real-time information accuracy;keeps running for 14 days or more once system loses power;
System-level thermal simulaion technologies,to make sure of products' reliability and lifetime;


Simple
Large LCD interface,easy to view and configure;
Perfect diagnosis,protection,records,inquires and other functions,easy troubleshooting


Communication
Strong networking,flexible to support RS485,WiFi,Ethernet,GPRS and other communication models;



Parameter sheet


SPECIFICATION MG 0.75-3kW
ITME NO. MG750TL MG1KTL MG1K5TL MG2KTL MG3KTL
Input (DC)
Max. DC input power (W) 900 1200 1700 2200 3300
Max. DC input voltage (V) 400 450 500
Starting voltage (V) / 60/50 80/60
Min. operation voltage (V)
MPPT range (V) 50-400 60-400 80-410 100-410 120-450
Quantity of MPPT / 1/1
String per MPPT
Max. DC current (A) per MPPT x Quantity of MPPT 8x1 9x1 10x1 12x1 15x1
Output (AC)
Rated output power (W) 750 1000 1500 2000 3000
Max. AC output current (A) 3.6 4.5 6.5 9 13
Power factor ≥0.99 (at rated power)
THDi <3% (at rated power)
Nominal output voltage (V) / frequency (Hz) 230, L+N+PE, 50/60
Efficiency
Max. efficiency 96.80% 96.90% 97.20% 97.20% 97.30%
Euro-efficiency 95.95% 96.00% 96.10% 96.10% 96.50%
MPPT efficiency 99.90%
Protection
Protection DC breaker, AC short-circuit protection, Over current protection, Over voltage protection, Isolation protection,
RCD, Surge protection, Anti-island protection, Over-temperature protection, Ground fault monitoring, etc.
General data
Display LED (standard) / LCD(optional)
LCD language English, Chinese, German, Dutch
Communication interface RS485(standard); WiFiEthernet(optional)
Cooling method Natural cooling
Protection degree IP65
Night self consumption (W) <1
Topology Transformerless
Operating temperature range -25~+60(derate after 45)
Relative humidity 4~100%, condensation

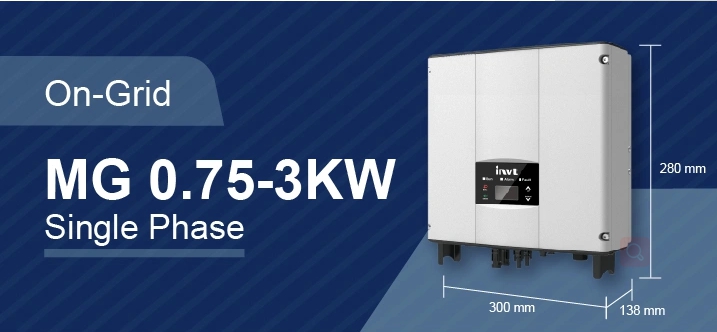

Dimension (H x W x D mm) 280x300x138
Weight (kg) ≤9.5
Grid qualification DIN VDE 0126-1-1:2013,  VDE-AR-N 4105:2011,  DIN VDE V 0124-100:2012,  EN 50438:2013,  G83-2 :2012,
IEC 61727(IEC62116),  AS/NZS 4777.2:2015,  NB/T32004-2013,  IEC 60068-2-1:2007,  IEC 60068-2-2:2007,
IEC 60068-2-14:2009,  IEC 60068-2-30:2005,  IEC 61683:1999,  C10/11,  TF3.2.1
Safe certificates / EMC certificates IEC 62109-1:2010,  IEC 62109-2:2011,  EN 61000-6-2:2005,  EN 61000-6-3:2007/A1:2011
Factory warranty (years) 5 yearsstandard


Certificate

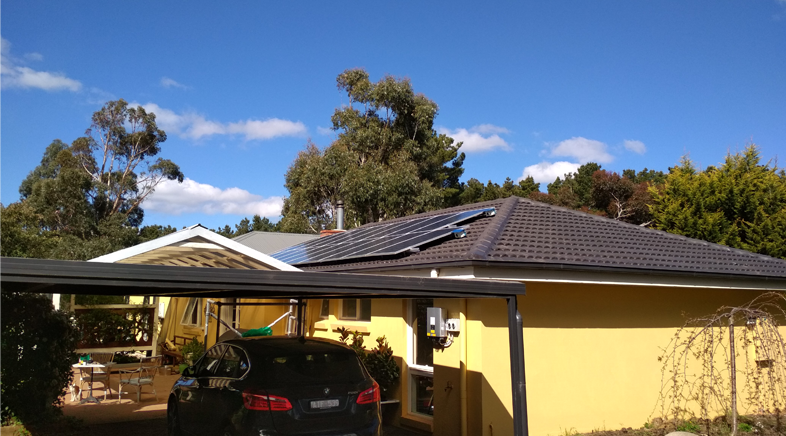

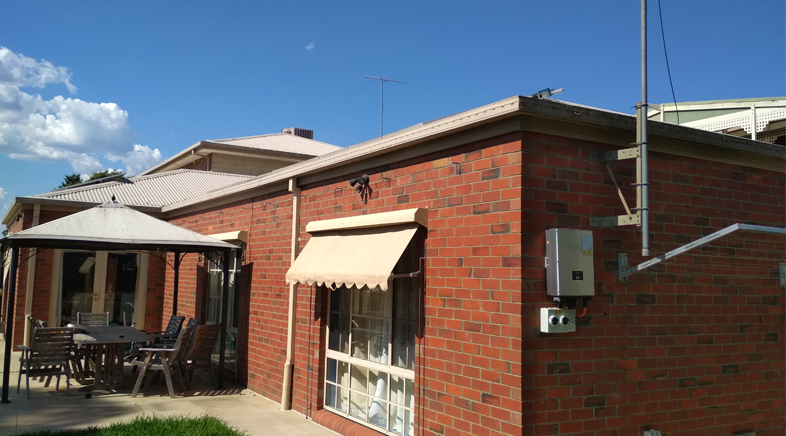

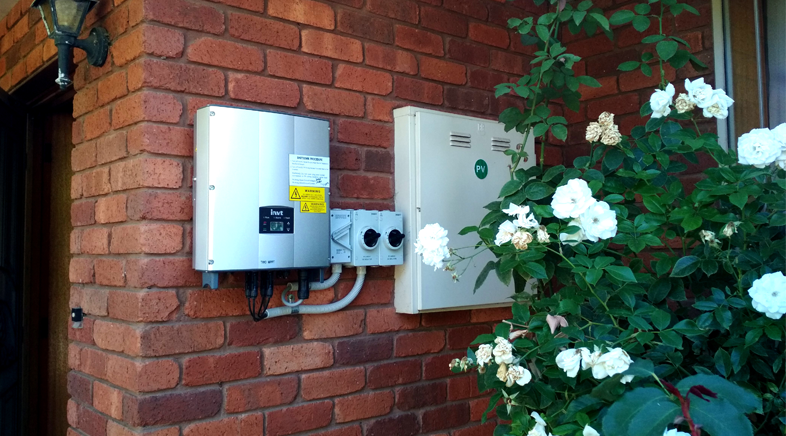

Application


Packing and shipping

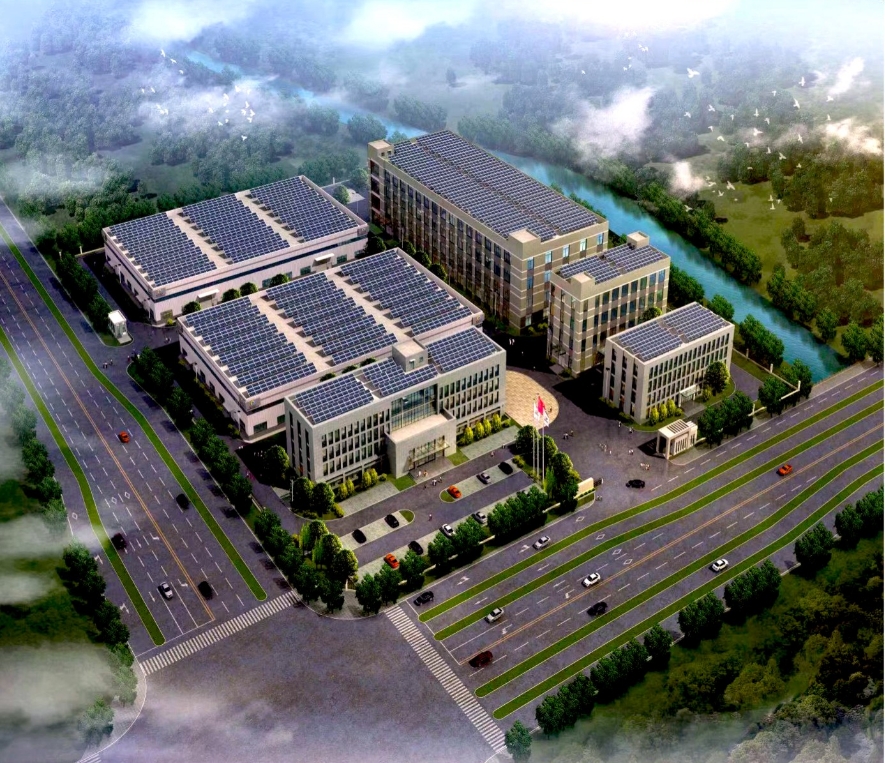

Company profile


Goosun Energy Construction Group Co., Ltd is one of the inland famous photovoltaic manufacturing enterprises,

which locates in the beautiful middle part city----Fuyang, which is suitable for investment. The company is founded in 2012,

with registered capital of 6.06 hundred million, covering an area of 33300 square meters. The existing staffs are 288,

country 530 introduces 1 scientific research talent, 4 Doctors, 46 middle and high ranking technical personnels.

The company devotes itself to the development, production and application of solar photovoltaic product, new energy product,

passing multiple international standard authentifications lke three standards and one system ISO9001\ISO14001\OHSAS18001, etc,

obtaning "high interity enterprise", "enterprise that defends the contract with heavy credit", "new high-tech enterprise",

high-tech industrialization demonstration base, multiple patents for invention, technology new type patents, utility type patents, etc.

The company technical force is strong, technology, detecting method is advanced, the product has already obtained Germany

IEC61215\TUV safety protection grade 2 grade, CE certification, CQC certification, UL certification. At present, company main

products include solar photovoltaic cell photovoltaic module, solar street lamp series, new energy charging point. Products have

respectively been exported to Ethiopia in 2013 and to India in 2015. Company products find a good sale in Europe, Latin America,

Australia, Africa, the Middle East, etc countries and regions. In recent years, the company ranks front row in self-support exporting

enterprises in the north of Anhui Province, which is awarded as industry transformation and upgrading advanced unit.



FAQ


Q1: Are you a manufacturer or a trading company?

We are both a manufacturer and a trading company. Our factory has great production capacity.

The number of solar panels produced can reach more than 10,000 pieces per day.

Q2: What is your main product?
Semi flexible solar panel, SMT small solar panel, foldable solar charger bag and solar power bank and other solar products suitable for end-consumer.

Q3: How many employees in your company?
We have about 100~120 employees, including office staff, R&D engineers, production line workers.

Q4: Can we request sample for your products before ordering?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q5: What is the general lead time?
Sample needs 15 days, the mass production is based on your purchase quantity, which is estimated to be 3-4 weeks.

Q6: What about the price?
Sample needs The price is negotiable.It can be changed according to your quantity or package. When you are making an inquiry,

please let us know the quantity you want.


Attention:
If you have any other questions,
You can contact us and we must try our best to meet your requirements.
