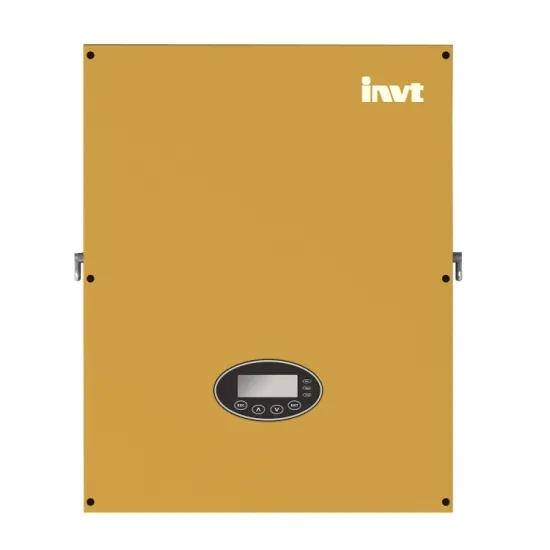

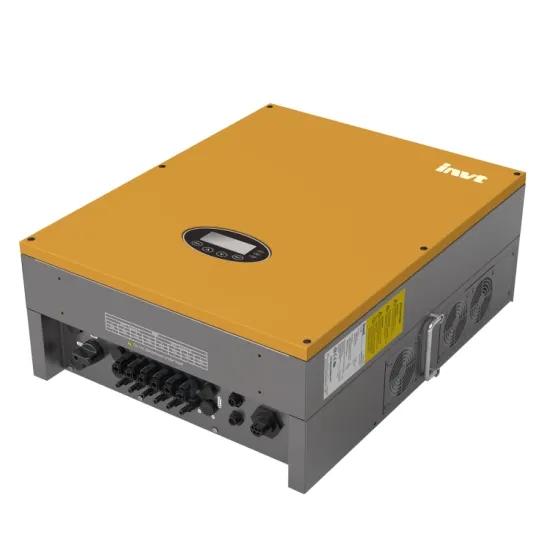

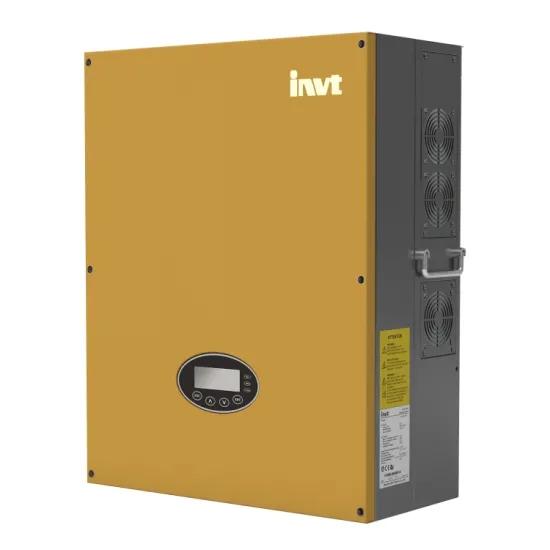

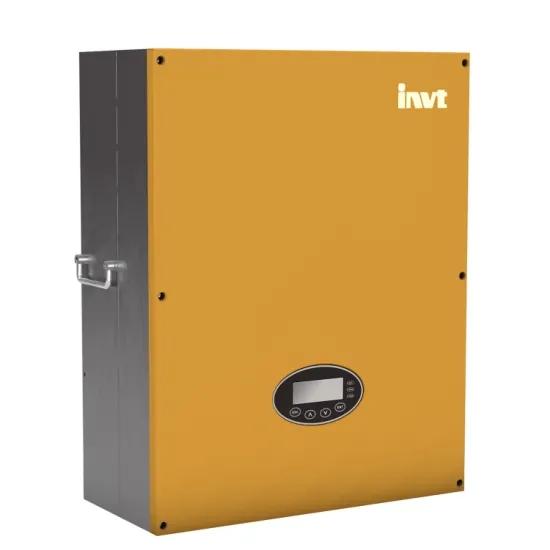

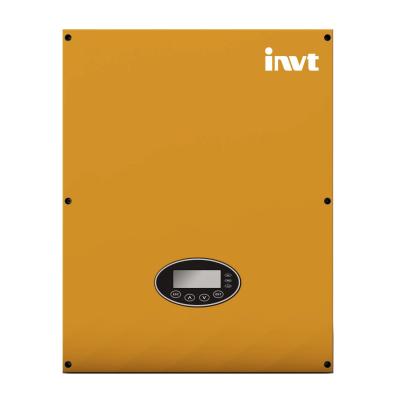

2021 hot sale 20KW three phase on grid solar inverter for solar system

可靠
▪ IP65防护等级,适合各种安装环境。
▪ 总线电容器由先进的薄膜电容器组成,采用最新的热模拟技术设计,具有更长的使用寿命。
▪ 国际知名财产保险公司(AIG)投保产品/竣工责任险。
  • Brand:

    Invt
  • Item NO.:

    BG20KTR-M
  • Order(MOQ):

    1
  • Payment:

    TT50% in advance ,pay balance before deliver
  • Price:

    $1020/piece
  • Price Range:

    1 - 10/$1020
  • Product Origin:

    China
  • Shipping Port:

    Shanghai
  • Lead Time:

    2-15days
  • Product Detail


描述


iMars BG 20-35KW三相并网逆变器 是英威腾专门针对商业用户和分销商开发的

接地电站。该系列采用最新技术,T型三电平拓扑结构与SVPWM相结合。

具有功率密度大、模块化设计、安装维护方便、性价比高等诸多突出优点

effective. It also provides more flexible system configuration and solutions for distributed PV power station and large PV grounded

power plants.



Features


Efficient

▪ Integrated intelligent DC combiner and surge protection improve system flexibility and lower the system cost.
▪ Max efficiency is up to 98.9%, wide input voltage range, adapt to all kinds of solar panels and string configuration.

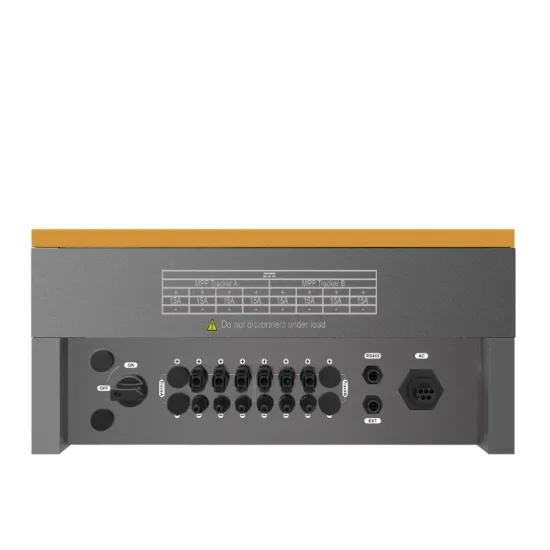

▪ Dual MPPTs work independently and allow unbalanced input power. One MPPT maximum input is up to 60% of Max. DC power.
▪ Adopt the latest technologies and combination of T-type three level topologies and SVPWM.
Reliable
▪ IP65 protection level, suitable for various installation environments.
▪ Bus capacitors consist of advanced film capacitors, designed with the latest thermal simulation technology for longer lifespan.
▪ Insurance by well-known international property insurance company (AIG) for Products /Completed Operations Liability Insurance.
Smart
▪ AC output power is adjustable between 1-100%.
▪ Smart grid adaptive to meet the requirements of various power grid accesses.
▪ Variety of monitoring modes: APP (one-button registration), large screen data monitoring center, cloud monitoring platform.
▪ Support RS485, GPRS, WIFI, Ethernet.
Simple
▪ High power density, small size.
▪ Modular design, easy to maintain.



Parameter sheet


SPECIFICATION BG 20-35kW
ITME NO. BG20KTR BG25KTR BG30KTR BG33KTR BG35KTR
INPUT (DC)
Max. DC input power (W) 20800 26000 31200 36000 38000
Max. DC input voltage (V) 1000
Starting voltage (V) / 300/280
Min. opration voltage (V)
MPPT Range(V) 280 - 800
Number of MPPT / 2/3 2/4
String per MPPT
Max. DC current (A) Per MPPT 25x2 30x2 33x2 33x2 33x2
x Number of MPPT
DC switch Integrated
OUTPUT (AC)
Rated output power (W) 20000 25000 30000 33000 35000
Max. AC output current(A) 32 40 48 48 48
Grid voltage range
3/N/PE,230/400V, (320~460V);
3/N/PE,220/380V, (320~460V)
3/N/PE,243/400V,
(357~483V)
Grid frequency range 50Hz (47~51.5Hz) / 60Hz (57~61.5Hz)
Power factor -0.8~+0.8 (adjustable)
THDi < 3% (at rated power)
AC output Three-phase (L1, L2, L3, N, PE)/(L1, L2, L3, PE)
SYSTEM
Cooling method Smart cooling method
Max. efficiency 98.40% 98.40% 98.50% 98.50% 98.50%
Euro-efficiency 98.00% 98.00% 98.00% 98.10% 98.10%
MPPT efficiency 99.90%
Protection rating IP65
Self-consumption(at night) (W) <0.5
Topology Transformerless
Operating temperature range -25ºC~+60ºC(derate after 45ºC)
Relative humidity 0~95%, no condensation
Protection
PV array insulation protection, PV array leakage current protection, Ground fault monitoring,
Grid monitoring, Island protection, DC monitoring, Short current protection etc.
Noise (dB) < 50
DISPLAY AND COMMUNICATION
Display 3.5 inches LCD display, support backlit display
LCD language English, Chinese, German, Dutch
Keyboard Integrated
Communication interface RS485 (standard) ;WiFi,Ethernet(optional)
MECHANICAL PARAMETERS
Dimension (H x W x D mm) 660x520x250
Weight (kg) 52
Installation Wall mounting
OTHERS
DC terminal MC4
Grid standard
DIN VDE 0126-1-1:2013,VDE-AR-N 4105:2011,DIN VDE V 0124-100:2012,
IEC 61727(IEC62116),AS/NZS 4777.2:2015,NB/T32004-2013,
IEC 60068-2-1:2007,IEC 60068-2-2:2007,IEC 60068-2-14:2009,
IEC 60068-2-30:2005,IEC 61683:1999,C10/11:2012,G59/3-2:2015,
EN 50438:2013,ZVRT, PEA
Safe certificate /
IEC 62109-1 :2010,IEC 62109-2 :2011,EN 61000-6-2: 2005,
EN 61000-6-3:2007/A1:2011
EMC category
Factory warranty (years)

5 yearsstandard

Certifiicate

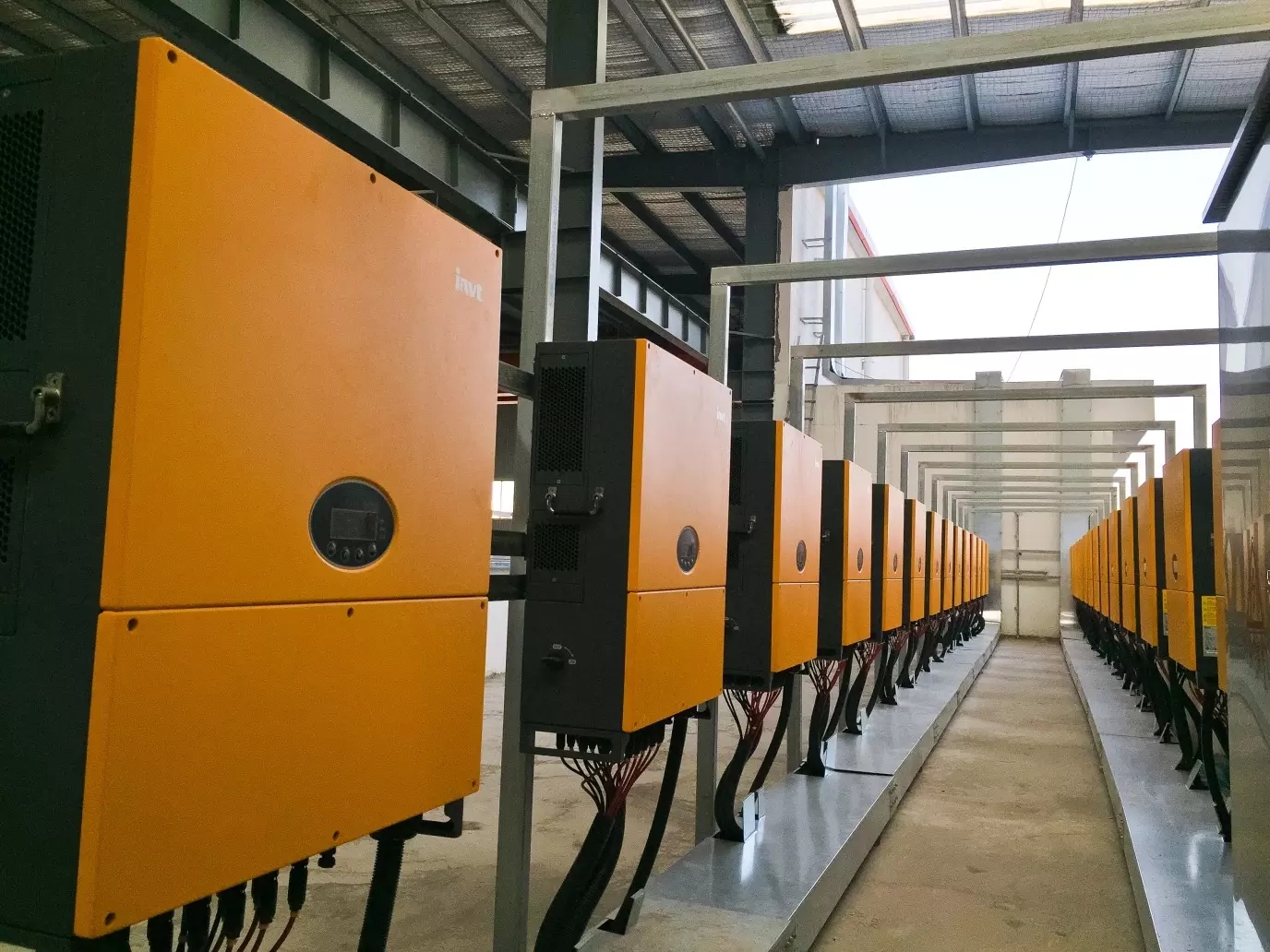

Application


Packing and shipping



Company profile


Goosun Energy Construction Group Co., Ltd is one of the inland famous photovoltaic manufacturing enterprises,

which locates in the beautiful middle part city----Fuyang, which is suitable for investment. The company is founded in 2012,

with registered capital of 6.06 hundred million, covering an area of 33300 square meters. The existing staffs are 288,

country 530 introduces 1 scientific research talent, 4 Doctors, 46 middle and high ranking technical personnels.

The company devotes itself to the development, production and application of solar photovoltaic product, new energy product,

passing multiple international standard authentifications lke three standards and one system ISO9001\ISO14001\OHSAS18001, etc,

obtaning "high interity enterprise", "enterprise that defends the contract with heavy credit", "new high-tech enterprise",

high-tech industrialization demonstration base, multiple patents for invention, technology new type patents, utility type patents, etc.

The company technical force is strong, technology, detecting method is advanced, the product has already obtained Germany

IEC61215\TUV safety protection grade 2 grade, CE certification, CQC certification, UL certification. At present, company main

products include solar photovoltaic cell photovoltaic module, solar street lamp series, new energy charging point. Products have

respectively been exported to Ethiopia in 2013 and to India in 2015. Company products find a good sale in Europe, Latin America,

Australia, Africa, the Middle East, etc countries and regions. In recent years, the company ranks front row in self-support exporting

enterprises in the north of Anhui Province, which is awarded as industry transformation and upgrading advanced unit.



FAQ


Q1: Are you a manufacturer or a trading company?

We are both a manufacturer and a trading company. Our factory has great production capacity.

The number of solar panels produced can reach more than 10,000 pieces per day.

Q2: What is your main product?
Semi flexible solar panel, SMT small solar panel, foldable solar charger bag and solar power bank and other solar products suitable for end-consumer.

Q3: How many employees in your company?
We have about 100~120 employees, including office staff, R&D engineers, production line workers.

Q4: Can we request sample for your products before ordering?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q5: What is the general lead time?
Sample needs 15 days, the mass production is based on your purchase quantity, which is estimated to be 3-4 weeks.

Q6: What about the price?
Sample needs The price is negotiable.It can be changed according to your quantity or package. When you are making an inquiry,

please let us know the quantity you want.


Attention:
If you have any other questions,
You can contact us and we must try our best to meet your requirements.




Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
INVT 15KW solar inverter
invt brand 15KW three phase solar inverter for solar power system
Reliable ▪ IP65 protection grade, suitable for various installation environments. ▪ Bus capacitors consist of advanced thin film capacitors designed with the latest thermal simulation technology for a longer service life. ▪ Product/completion liability insurance with internationally renowned property insurance company (AIG).
Read More
INVT 25KW inverter BG25KTR
25KW three phase on grid solar inverter for solar power system
可靠 ▪ IP65防护等级,适合各种安装环境。 ▪ 总线电容器由先进的薄膜电容器组成,采用最新的热模拟技术设计,具有更长的使用寿命。 ▪ 国际知名财产保险公司(AIG)投保产品/竣工责任险。
Read More
INVT 30KW inverter BG30KTR
invt brand 30KW three phase inverter for solar power system
Reliable ▪ IP65 protection grade, suitable for various installation environments. ▪ Bus capacitors consist of advanced thin film capacitors designed with the latest thermal simulation technology for a longer service life. ▪ Product/completion liability insurance with internationally renowned property insurance company (AIG).
Read More
4-5kw home use Intelligent Inverter
MG Best Home Use 4-5kw Intelligent Inverter Solar Power Inverter
The iMars MG single camera series is a photovoltaic group inverter developed by INVT for family users. It is small in size, light in weight, easy to install and maintain, and has high cost performance.
Read More

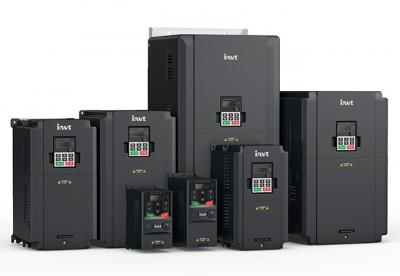

factory inverter
