描述

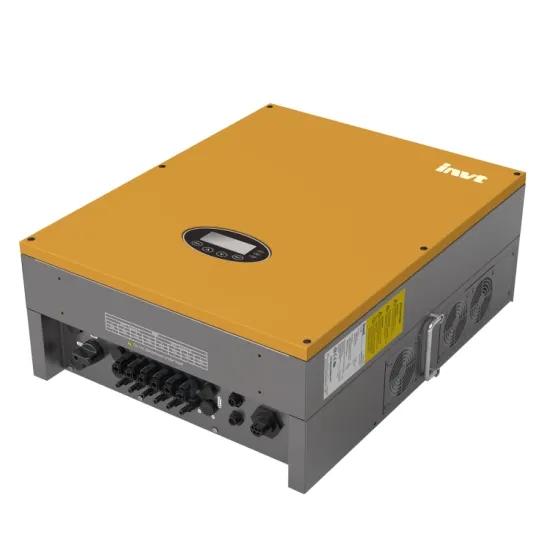

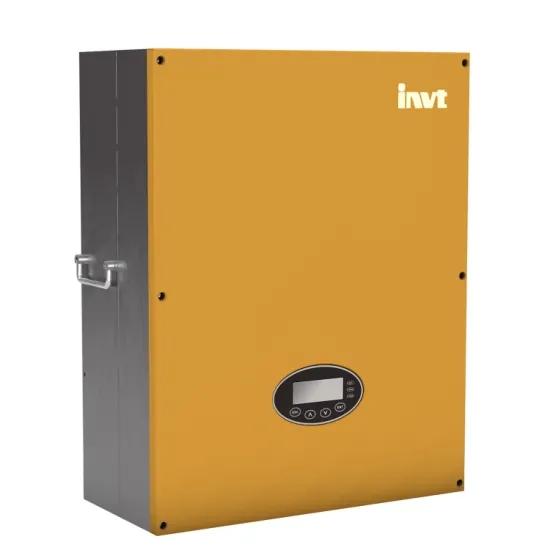

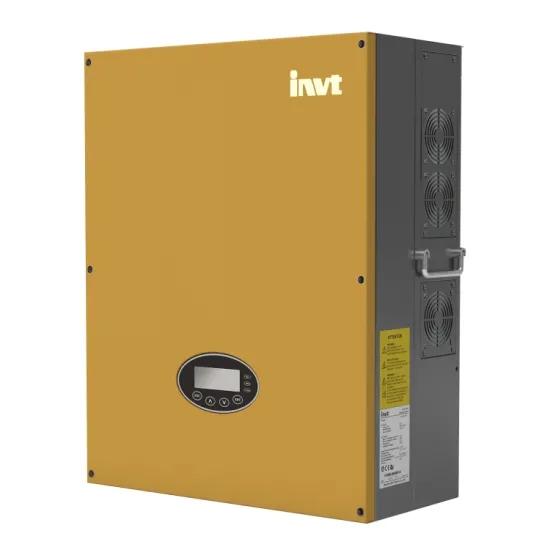

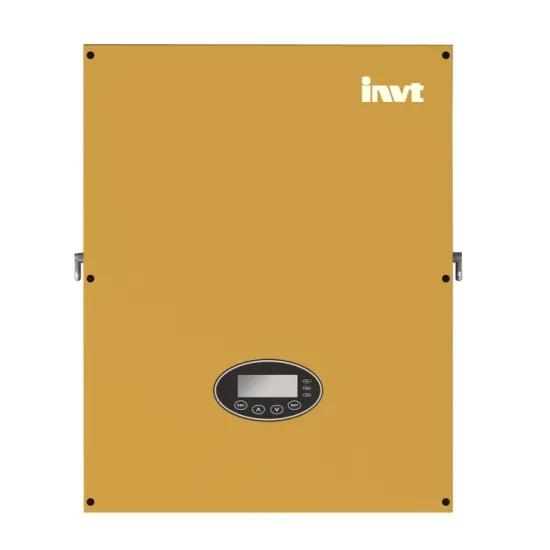

iMars BG 20-35KW三相并网逆变器 是英威腾专门针对商业用户和分销商开发的
接地电站。该系列采用最新技术，T型三电平拓扑结构与SVPWM相结合。
具有功率密度大、模块化设计、安装维护方便、性价比高等诸多突出优点
effective. It also provides more flexible system configuration and solutions for distributed PV power station and large PV grounded
power plants.
Features
Efficient
▪ Integrated intelligent DC combiner and surge protection improve system flexibility and lower the system cost.
▪ Max efficiency is up to 98.9%, wide input voltage range, adapt to all kinds of solar panels and string configuration.
▪ Dual MPPTs work independently and allow unbalanced input power. One MPPT maximum input is up to 60% of Max. DC power.
▪ Adopt the latest technologies and combination of T-type three level topologies and SVPWM.
Reliable
▪ IP65 protection level, suitable for various installation environments.
▪ Bus capacitors consist of advanced film capacitors, designed with the latest thermal simulation technology for longer lifespan.
▪ Insurance by well-known international property insurance company (AIG) for Products /Completed Operations Liability Insurance.
Smart
▪ AC output power is adjustable between 1-100%.
▪ Smart grid adaptive to meet the requirements of various power grid accesses.
▪ Variety of monitoring modes: APP (one-button registration), large screen data monitoring center, cloud monitoring platform.
▪ Support RS485, GPRS, WIFI, Ethernet.
Simple
▪ High power density, small size.
▪ Modular design, easy to maintain.
Parameter sheet
| SPECIFICATION | BG 20-35kW | ||||
| ITME NO. | BG20KTR | BG25KTR | BG30KTR | BG33KTR | BG35KTR |
| INPUT (DC) | |||||
| Max. DC input power (W) | 20800 | 26000 | 31200 | 36000 | 38000 |
| Max. DC input voltage (V) | 1000 | ||||
| Starting voltage (V) / | 300/280 | ||||
| Min. opration voltage (V) | |||||
| MPPT Range(V) | 280 - 800 | ||||
| Number of MPPT / | 2/3 | 2/4 | |||
| String per MPPT | |||||
| Max. DC current (A) Per MPPT | 25x2 | 30x2 | 33x2 | 33x2 | 33x2 |
| x Number of MPPT | |||||
| DC switch | Integrated | ||||
| OUTPUT (AC) | |||||
| Rated output power (W) | 20000 | 25000 | 30000 | 33000 | 35000 |
| Max. AC output current(A) | 32 | 40 | 48 | 48 | 48 |
| Grid voltage range |
3/N/PE,230/400V, (320~460V);
3/N/PE,220/380V, (320~460V)
|
3/N/PE,243/400V,
(357~483V)
|
|||
| Grid frequency range | 50Hz (47~51.5Hz) / 60Hz (57~61.5Hz) | ||||
| Power factor | -0.8~+0.8 (adjustable) | ||||
| THDi | < 3% (at rated power) | ||||
| AC output | Three-phase (L1, L2, L3, N, PE)/(L1, L2, L3, PE) | ||||
| SYSTEM | |||||
| Cooling method | Smart cooling method | ||||
| Max. efficiency | 98.40% | 98.40% | 98.50% | 98.50% | 98.50% |
| Euro-efficiency | 98.00% | 98.00% | 98.00% | 98.10% | 98.10% |
| MPPT efficiency | 99.90% | ||||
| Protection rating | IP65 | ||||
| Self-consumption(at night) (W) | <0.5 | ||||
| Topology | Transformerless | ||||
| Operating temperature range | -25ºC~+60ºC(derate after 45ºC) | ||||
| Relative humidity | 0~95%, no condensation | ||||
| Protection |
PV array insulation protection, PV array leakage current protection, Ground fault monitoring,
Grid monitoring, Island protection, DC monitoring, Short current protection etc.
|
||||
| Noise (dB) | < 50 | ||||
| DISPLAY AND COMMUNICATION | |||||
| Display | 3.5 inches LCD display, support backlit display | ||||
| LCD language | English, Chinese, German, Dutch | ||||
| Keyboard | Integrated | ||||
| Communication interface | RS485 (standard) ;WiFi,Ethernet(optional) | ||||
| MECHANICAL PARAMETERS | |||||
| Dimension (H x W x D mm) | 660x520x250 | ||||
| Weight (kg) | 52 | ||||
| Installation | Wall mounting | ||||
| OTHERS | |||||

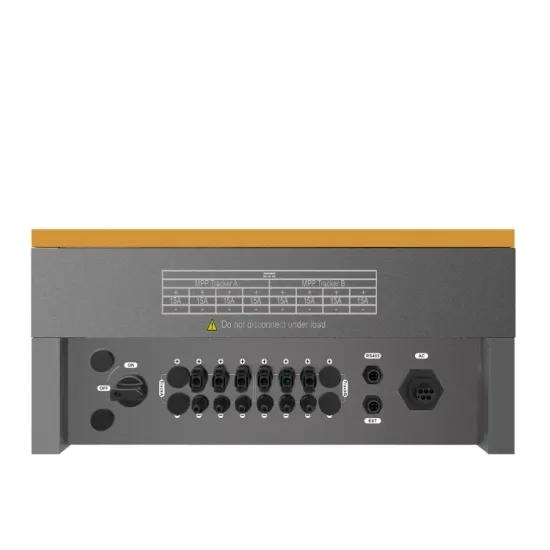

| DC terminal | MC4 | ||||
| Grid standard |
DIN VDE 0126-1-1:2013,VDE-AR-N 4105:2011,DIN VDE V 0124-100:2012,
IEC 61727(IEC62116),AS/NZS 4777.2:2015,NB/T32004-2013,
IEC 60068-2-1:2007,IEC 60068-2-2:2007,IEC 60068-2-14:2009,
IEC 60068-2-30:2005,IEC 61683:1999,C10/11:2012,G59/3-2:2015,
EN 50438:2013,ZVRT, PEA
|
||||
| Safe certificate / |
IEC 62109-1 :2010,IEC 62109-2 :2011,EN 61000-6-2: 2005,
EN 61000-6-3:2007/A1:2011
|
||||
| EMC category | |||||
| Factory warranty (years) |
5 years（standard） |
||||
