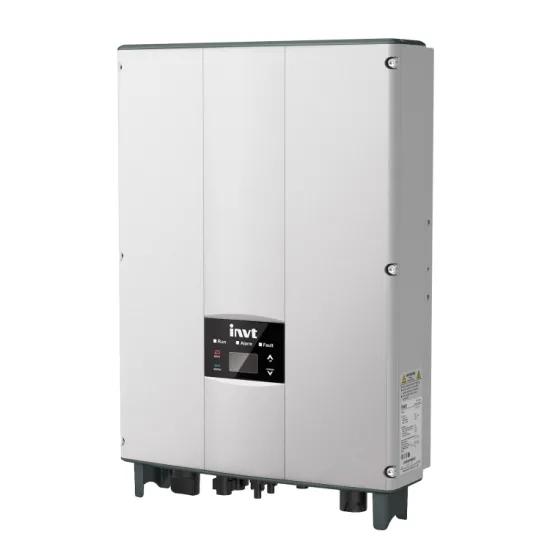

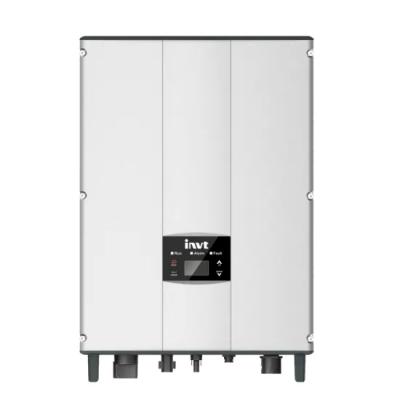

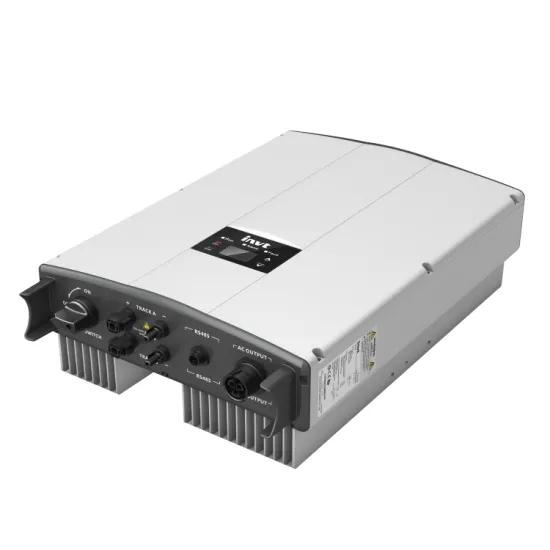

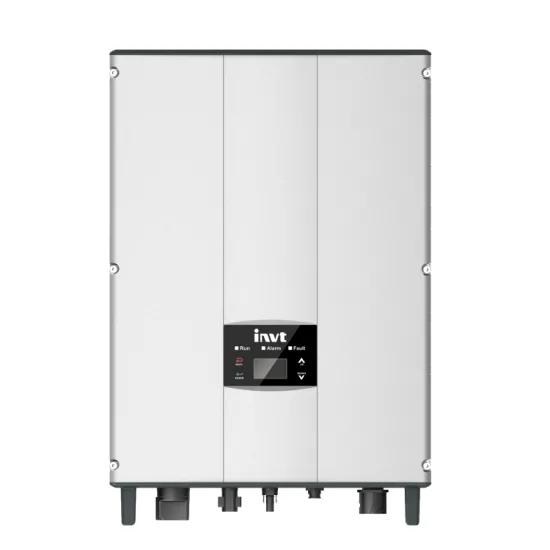

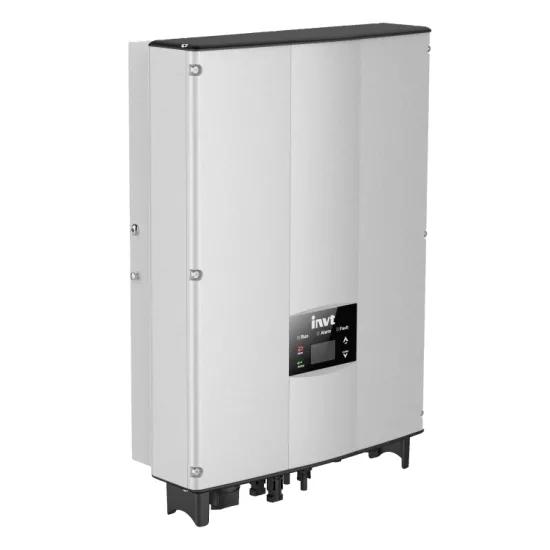

Invt 6KW three phase inverter for solar power system

Reliable
▪ Aluminum casing, natural cooling, IP65 protection level.
▪ Adopt internationally famous brand components to ensure the stable operation of inverter.
▪ Insurance by well-known international property insurance company (AIG) for Products /Completed Operations Liability Insurance
  • Brand:

    Invt
  • Item NO.:

    BG6KTR
  • Payment:

    TT50% in advance ,pay balance before deliver
  • Price:

    $590/piece
  • Price Range:

    1 - 10/$590
  • Product Origin:

    China
  • Shipping Port:

    shanghai port
  • Lead Time:

    2-15days
  • Product Detail

Description


BG series three phase inverter has been developed by INVT, specially for residential and small commercial

customers. This series adopts the latest technologies and combination of T-type three level topology and SVPWM.

It has many outstanding advantages such as compact size, light weight, easy installation and maintenance, and
most of all, competitive prices. It also provides flexible system configuration and monitoring solutions for household
and commercial systems.


Features


Efficient

▪ The core technologies are from Germany.
▪ Wider voltage range, lower starting voltage and higher conversion efficiency (Max efficiency can be reach to 98.3%).
▪ Two MPPT, adapt to the complex environment of roof, improve power generation.
▪ Adopt the latest technologies and combination of T-type three level topologies and SVPWM.
Reliable
▪ Aluminum casing, natural cooling, IP65 protection level.
▪ Adopt internationally famous brand components to ensure the stable operation of inverter.
▪ Insurance by well-known international property insurance company (AIG) for Products /Completed Operations Liability Insurance
Smart
▪ Smart grid adaptive to meet the requirements of various power grid accesses.
▪ Variety of monitoring modes: APP (one-button registration), large screen data monitoring center, cloud monitoring platform.
▪ Support RS485, GPRS, WIFI, Ethernet.
Simple
▪ Home appliance design, easy to operation.
▪ Small in size, light in weight, easy to install by a single person.



Parameter sheet


SPECIFICATION BG 4-6kW
ITME NO. BG4KTR BG4KTR-S BG5KTR BG5KTR-S BG6KTR
Input (DC)
Max. DC input power (W) 4800 4800 5700 5700 7200
Max. DC input voltage (V) 900
Starting voltage (V) / 220/180
Min. operation voltage (V)
MPPT range (V) 200-800/580
Quantity of MPPT / 2/1 1/1 2/1 1/1 2/1
String per MPPT
Max. DC current (A) per MPPT x Quantity of MPPT 10x2 12x1 10x2 12x1 10x2
Output (AC)
Rated output power (W) 4000 4000 5000 5000 6000
Max. AC output current (A) 6.4 6.4 8 8 9.6
Power factor ≥0.99 (at rated power)
THDi <3% (at rated power)
Nominal output voltage (V) / frequency (Hz) 230/400V;220/380V, 3L+N+PE/3L+PE, 50/60
Efficiency
Max. efficiency 98.10% 98.10% 98.10% 98.10% 98.20%
Euro-efficiency 97.50% 97.50% 97.60% 97.60% 97.70%
MPPT efficiency 99.90%
Protection
Protection DC breaker, AC short-circuit protection, Over current protection, Over voltage protection, Isolation protection,
RCD, Surge protection, Anti-island protection, Over-temperature protection, Ground fault monitoring, etc.
General data
Display 2.0 inches LCD display, support backlit display
LCD language English, Chinese, German, Dutch

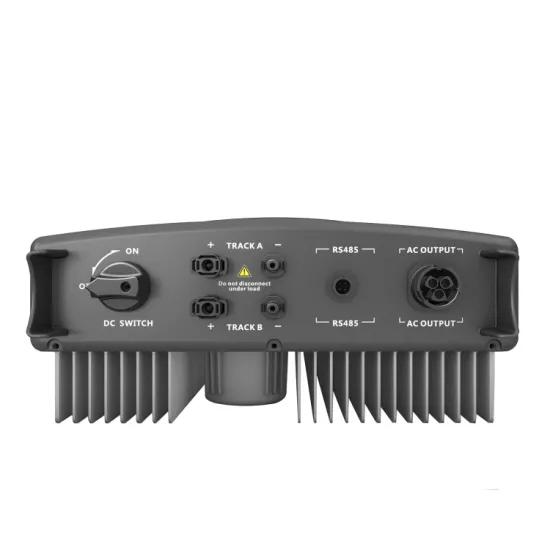

Communication interface RS485(standard); WiFi、Ethernet(optional)
Cooling method Natural cooling
Protection degree IP65
Night self consumption (W) <1
Topology Transformerless
Operating temperature range -25℃~+60℃(derate after 45℃)
Relative humidity 4~100%, condensation

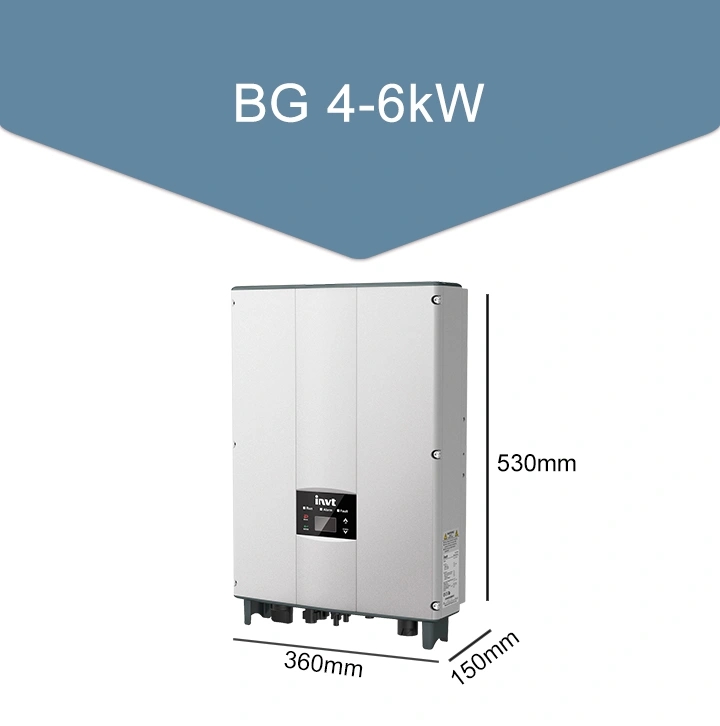

Dimension (H x W x D mm) 530x360x150
Weight (kg) 22
Grid qualification IEC 61727(IEC62116),  IEC 60068-2-1:2007,  IEC 60068-2-2:2007,  IEC 60068-2-14:2009,  IEC 60068-2-30:2005,  IEC 61683:1999,  VDE0126-1-1,
VDE-AR-N4105,  G59/3,  C10/11,  AS/NZS 4777.2:2015,  NB/T 32004-2013,  PEA,  ZVR
Safe certificates / IEC 62109-1:2010,  IEC 62109-2:2011,  EN 61000-6-2:2005,  EN 61000-6-3:2007/A1:2011
EMC certificates
Factory warranty (years) 5 yearsstandard
